PV3000

The Most Versatile, Cost-Effective Large Format Digital Cutting Machine for Packaging Production

PV3000

The Most Versatile, Cost-Effective Large Format Digital Cutting Machine for Packaging Production

Purpose-Built Cutting Table to Support Package Prototyping & Short-Run Production Needs

For over 20 years, Padrick & Vernon has supported the large format cutting machine needs of packaging companies, specialty printers, and brands. Our PV3000 cutting table provides speed, precision, and flexibility to handle a range of materials, offering greater efficiency and opportunity for package prototyping and short-run packaging production. Materials the PV3000 handles include:

✓ Corrugated Up to Triple Wall
✓ PE Foam Up to 3″ Nominal
✓ SBS
✓ Chipboard
✓ Coroplast
✓ Printing Blankets
✓ Falconboard®
✓ Honeycomb Board
✓ Foamboard
✓ Sintra
✓ Paper
✓ Vinyl
✓ Laminate
✓ Fabric
✓ Foil

Take Your Packaging Designs from Concept to Creation

Watch how quickly the PV3000 cuts intricate designs enabling designers to test hundreds of product packaging ideas.

Take Your Packaging Designs from Concept to Creation

Watch how quickly the PV3000 cuts intricate designs enabling designers to test hundreds of product packaging ideas.

Speed. Versatility. Affordability.
It’s All Here.

Whether you’re replacing an outdated cutting table or adding your first in-house cutting solution, the PV3000 large format cutting machine is packed with capabilities and priced to deliver an immediate ROI.

Download the PV3000 Spec Sheet [PDF]

Extendable Capabilities

The PV3000’s triple interchangeable tool head allows you to rapidly transition between a reciprocating knife, drag knife, 5″ creasing wheel, standard crease wheel, routing, and plotting. Optional add-on tools can be interchanged to expand the table’s capabilities.

Smooth Operation

The helical rack and pinion system provides smoother, more accurate operation over straight rack and pinion or belt-driven systems. This creates less strain on the motor, increasing the cutter’s longevity and endurance and lowering the cost of ownership.

Speed & Accuracy

As one of the fastest cutting machines on the market, the PV3000 offers .86G dry haul acceleration to deliver high speeds and superior accuracy for even the most intricate designs.

Integrated Camera Sensors

With built-in camera sensors the PV3000 can recognize print registration marks for printed sheet cutting and bar codes to support workflow tracking.

CAD File Support

The PVFront Frontend Software supports .hpgl and .dxl CAD file formats, as well as prior Data Technology files without needing conversion.

Expansive Work Area

The PV3000’s large work area can handle sheets as large as 80″ x 124″ and can cut an item as small as 1/4″ circle.

Strong, Efficient Holds

Each vacuum in the PV3000’s six-zone acrylic vacuum plate has its own motor to deliver a stronger, more efficient hold of your materials, compared to traditional vacuums with a single motor.

Exceptional Service & Support

We are dedicated to supporting customers with machine installation, training, and remote and onsite technical support to ensure they fully realize the ROI of their PV3000.

Sustainable Solution

Support your sustainability objectives with a digital cutting machine manufactured and assembled in the U.S.A.

Flexible & Efficient Digital Cutting Machine for a Range of Applications

With its large work area and interchangeable tool head, the PV3000 is a highly flexible and efficient digital cutting table for a range of production needs.

Sample Making & Prototyping

A PV3000 digital cutter lets you create packaging prototypes and samples quickly and cost-effectively, and in the same quality as can be achieved in the production process.

Small Batch Production

The PV3000 was built for production quantity output. Its quick setup and efficient changeover to different materials and designs make it a strong profit generator. Utilizing the table for producing short runs at higher margins further accelerates the ROI.

Retail Displays

The PV3000’s built-in print registration system includes advanced cameras and software to accurately cut preprinted materials. This makes it efficient and cost-effective to produce high-quality short-run Retail Displays and high-graphics packaging.

Protective Packing

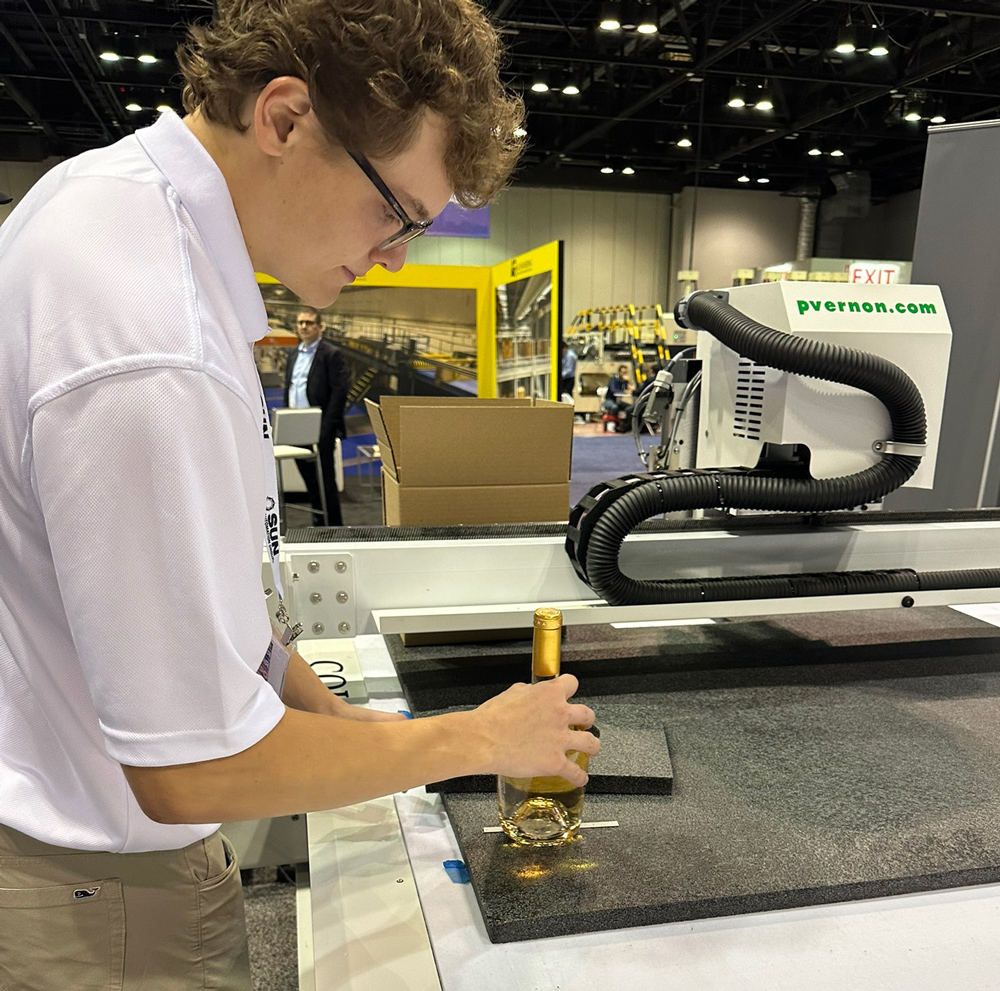

Each PV3000 comes with a 3” nominal PE Foam cutting capability. This makes supporting customers with a high number of SKUs at low volumes a manageable and profitable reality.

Printing & Coating Blankets

The PV1700 is a smaller-footprint version of our table that can accurately and quickly produce printing, coating blankets, and spot sheets to support your pre-press operations.

Optional Tools to Extend the Functionality of Your PV3000

Expand the PV3000’s table capabilities with a variety of optional tools, easily added to the interchangeable tool head.

Corrugated Reciprocating Knife

Cutting tool to process corrugated material from Micro Flute to Triple Wall.

5″ Scoring Wheel

Create a tear or folding line in paper, vinyl, SBS, and chipboard.

Fixed Double-Edge Knife

Versatile cutting tool to handle SBS, chipboard, mat board, expanded PVC, laminate, and foil (vinyl, magnetic and membrane).

Coroplast/Corrugated Drag Knife

Cutting tool to process Coroplast up to 4 mm thick, corrugated cardboard A-, B- and C-Flute, paper stock up to 80 lbs., and vinyl.

Universal Single-Edge Knife

Universal cutting tool for foam board up ¼” and Sintra PVC board up to 6mm.

Standard Crease Wheel

Designed for folding carton and corrugated stock up to Double Wall thickness.

Universal Drawing Tool

Drawing tool for use with widely available, standard pen inserts in various line thicknesses.

Kiss-Cutting Tool

Kiss-cutting tool with adjustable pressure for processing pressure sensitive labels, decals, and vinyl.
